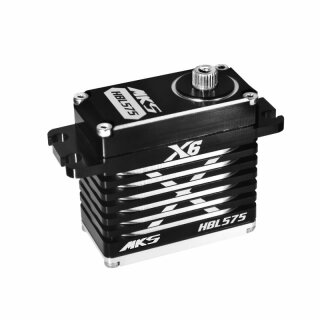

HBL575 - High Speed Servo
- used from MKS factory repair - engine and gearbox new. Minimal signs of use may be present. The original accessories are included with the servo when it is new.
Perfect Servo for 1/10, 1/8 scale buggy.
High speed, incredible efficiency, and low power consumption.
CNC Machined Metal Case Design for Exceptional Cooling.
HD 4096 Resolution, 0.008ms Dead Band.
Superior Holding Torque, Japanese Brushless Motor.
Extremely strong Chrome-Titanium alloy gear.
Specifications:
- Torque: 18 kg/cm (6.0V) - 22 kg/cm (7.4V) - 24 kg/cm (8.2V)
- Speed: 0.082s (6.0V) - 0.066s (7.4V) - 0.06s (8.2V)
- Weight: 71.4 g
- Dimension: 40 x 20 x 38.5 mm
- Working Voltage: 3.5 - 8.4 V DC Volts (2S Lipo un-regulated)
- Working frequency: 1520µs / 333Hz
- Dead Band: 0.0008 ms
- Bearing: 2BB
- Motor: Japan High Quality Brushless Motor
- Gear: Chrome-Titanium alloy gear
