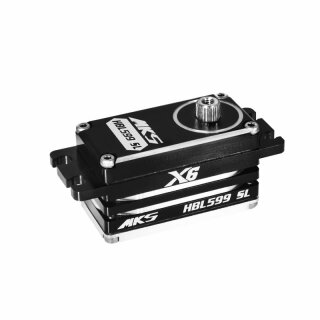

HBL599SL HV Digital Servo brushless X6 Serie

Artikelnummer: S0026006

EAN: 4710150350691

Kategorie: 20mm Servos


146,21 €
knapper Lagerbestand

Lieferzeit: 2 - 3 Werktage

Stk


Ideal for 1/10 surface applications.
Combining full metal gears, case and amazing speed.
The low-profile dimensions makes it perfect for any vehicle that is cramped for space.
CNC Machined Metal Case Design for Exceptional Cooling.
HD 4096 Resolution, 0.008ms Dead Band.
Superior Holding Torque, Japanese Brushless Motor.
High speed, incredible efficiency, and low power consumption than comparable servos.

Specifications:

  • Torque: 16 kg/cm (4.8V) - 18 kg/cm (6.0V) - 23 kg/cm (7.4V)
  • Speed: 0.14s (4.8V) - 0.11s (6.0V) - 0.09s (7.4V)
  • Weight: 53.5 g
  • Dimension: 40.5 x 20.5 x 23.1 mm
  • Working Voltage: 3.5 - 8.4 V DC Volts (2S Lipo un-regulated)
  • Working frequency: 1520µs / 333Hz
  • Dead Band: 0.0008 ms
  • Bearing: 2BB
  • Motor: Japan High Quality Brushless Motor
  • Gear: Chrome-Titanium alloy gear

Servodicke: 20mm
Servospannung: max 8.4V
Servotyp: Car Servo
