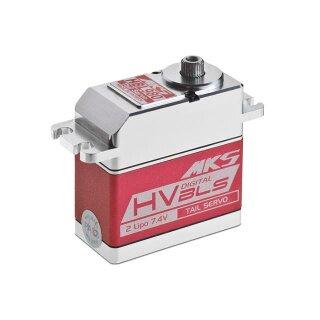

HBL980 HV Digital Servo brushless

SKU: S0010006
GTIN: 4710150350141
Category: 20mm Servos
Manufacturers: MKS

Heckservo Standardgröße - 20 mm
0.036 sec/60° bei 7,4V

140,90 €

incl. 19% VAT ,

Low stock level
Delivery time: 2 - 3 Workdays (DE - int. shipments may differ)

pcs

Description

HBL980 specs:
Torque (kg-cm): 4.5 (6.0V) / 5.6 (7.4V) / 6.2 (8.2V)
Speed: 0.040 s (6.0V) / 0.036 s (7.4V) / 0.030 s (8.2V)
Stall Current (at locked load): 2.3A (6.0V) / 2.8A (7.4V) / 3.1A (8.2V)
Working Voltage: 6.0V - 8.4V DC Volts
Working Frequency: 760µs / 560Hz
Dead Band: 0.0008ms (Default)
Bearing: 2* Ball Bearing
Gear: Metal Alloy Gear
Motor: Japan-Made Brushless Motor
Weight: 70.29 g / 2.48 oz
Dimension: 40 x 20 x 40 mm

Servothickness:	20mm
Servovoltage:	max 8.4V
