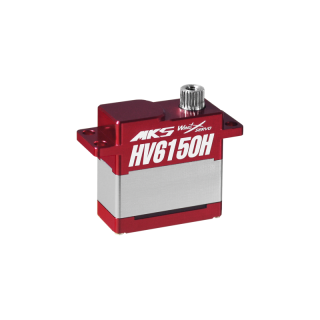

Servospecification:
Torque (kg-cm): 6.3(4.8V) / 8.2(6.0V) / 9.8(7.4V) / 10.9(8.2V)
Speed: 0.274s (4.8V) / 0.190s (6.0V) / 0.176s (7.4V) / 0.159s (8.2V)
Stall Current (at locked load): 0.8A (4.8V) / 0.96A (6.0V) / 1.2A (7.4V) / 1.35A (8.2V)
Working Voltage: 4.8V - 8.4V DC Volt
Working Frequency: 1520μs / 333Hz
Dead Band: 0.001 ms (Default)
Bearing: 2*Oil-retaining Bearing + 2*Jewel Bearing
Gear: Metal Alloy Gear
Motor: Coreless Motor
Dimension: 23.5 x 11 x 25 mm
Weight: 17.4 g
