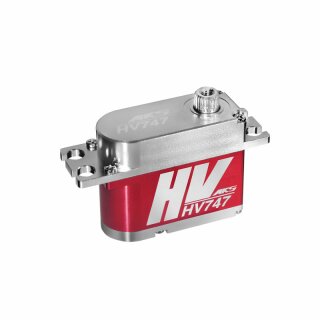

High Torque Servo for Glider Tail / Airplane / Jet / Electric Plane
- 12 x 20 mm coreless motor, high efficient, more durable
- 9mm VR, ultrahigh resolution
- new type gear structure, tiny backlash, high durable
Torque: 11.8 kg-cm (6.0V) / 13.8 kg-cm (7.4V) / 15 kg-cm (8.2V)
Speed: 0.17 s (6.0V) / 0.14 s (7.4V) / 0.13 s (8.2V)
Weight: 38.55 g
Dimension: 35.5 x 15 x 28.5 mm
Working Voltage: 5.5 - 8.4 V DC Volts (2S Lipo un-regulated)
Working frequency: 1520µs / 333hz
Dead Band: 0.001 ms (Default)
Bearing: 2BB
Motor: Coreless Motor
Gear: Chrome-Titanium alloy gear
Electric current draw: 2.6A max.(8.2V) ¦ 2.4A max.(7.4V) ¦ 2.0A max (6.0V)
Wire Length: 29.5 cm
