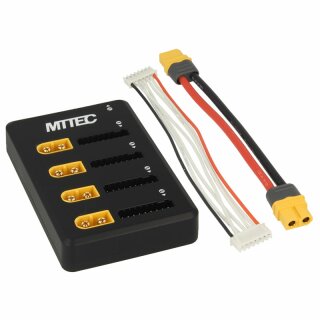

The MTTEC-iSDT Paraboard PB-4P8S offers you the possibility to charge up to 4 batteries with the same cell count at the same time.
Technical specification:
- Input: XT60 plug male
- Input current: max. 40A
- Cell count: up to 8S
- XH Balance connector
- Output: 4* XT60 plug male - max. 40A per output - 4* XH Balance connectors up to 8S
- max. Balance current of the charger: 2.5 A
- plastic case
- 24 SMD fuses for the balance connections and 3 min fuses for the charge connections
- input wire 12AWG = 4 mm²
-
Dimensions: 92x60x16,5 mm
- weight: 76g
delivery:
Paraboard MTTEC PB-4P8S
Connection wire XT60 female to XT60 female
Balance wire for 6S (8S wire is optional, check MT1431)
