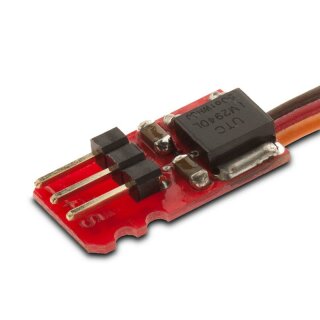

for DS6125MINI / DS6125H / DS6100 / DS65K
- Input voltage: 5.1V - 8.4V
- Output voltage: 5.0V±0.1V
- Output maximum current: 1.5A
- Maximum working temp: 70 °C
- Wire lenght: 12 ore 7 cm
- Weight: 2.45 g
Function:
1. A dedicated SBEC per servo can protect the rest of the servos , and the receiver in case of abnormal situation like a servos blocked because of the control surface, or an unlikely malfunction of the servos.
2. Regulating the output current and avoid the servo overloading.
3. When using Lipo 7.2~8.4V, the SBEC can provide stable voltage to the servo.
4. Linear mode; No interference.
