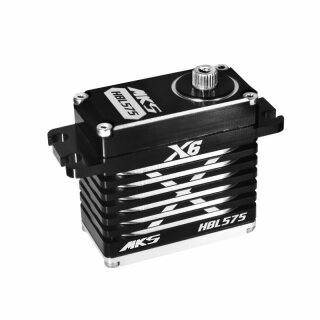

HBL575 HV Digital Servo brushless X6 Serie

Artikelnummer: S0026001

EAN: 4710150350646

Kategorie: 20mm Servos


176,99 €
sofort verfügbar

Lieferzeit: 2 - 3 Werktage

Stk


HBL575 - High Speed Servo

Perfect Servo for 1/10, 1/8 scale buggy.
High speed, incredible efficiency, and low power consumption.
CNC Machined Metal Case Design for Exceptional Cooling.
HD 4096 Resolution, 0.008ms Dead Band.
Superior Holding Torque, Japanese Brushless Motor.
Extremely strong Chrome-Titanium alloy gear.

Specifications:

  • Torque: 18 kg/cm (6.0V) - 22 kg/cm (7.4V) - 24 kg/cm (8.2V)
  • Speed: 0.082s (6.0V) - 0.066s (7.4V) - 0.06s (8.2V)
  • Weight: 71.4 g
  • Dimension: 40 x 20 x 38.5 mm
  • Working Voltage: 3.5 - 8.4 V DC Volts (2S Lipo un-regulated)
  • Working frequency: 1520µs / 333Hz
  • Dead Band: 0.0008 ms
  • Bearing: 2BB
  • Motor: Japan High Quality Brushless Motor
  • Gear: Chrome-Titanium alloy gear

Servodicke: 20mm
Servospannung: max 8.4V
Servotyp: Car Servo
