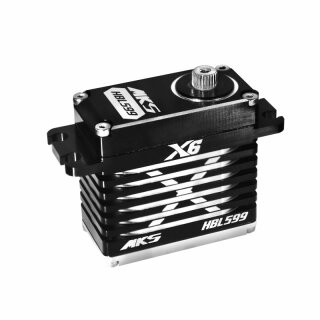

HBL599 - Ultra Torque Servo
Perfect Servo for 1/10, 1/8, 1/5 scale buggy.
Ultra torque, incredible efficiency, and low power consumption.
CNC Machined Metal Case Design for Exceptional Cooling.
HD 4096 Resolution, 0.008ms Dead Band.
Superior Holding Torque, Japanese Brushless Motor.
Output performance to the top level – smoother, faster, and more efficient.
Special design for high voltage 2s LiPo operation.
Extremely strong Chrome-Titanium alloy gear, providing high level of durability that will survive heavy use.
Specifications:
- Torque: 30 kg/cm (6.0V) - 38 kg/cm (7.4V) - 42 kg/cm (8.2V)
- Speed: 0.11s (6.0V) - 0.09s (7.4V) - 0.08s (8.2V)
- Weight: 73.12 g
- Dimension: 40 x 20 x 38.5 mm
- Working Voltage: 3.5 - 8.4 V DC Volts (2S Lipo un-regulated)
- Working frequency: 1520µs / 333Hz
- Dead Band: 0.0008 ms
- Bearing: 2BB
- Motor: Japan High Quality Brushless Motor
- Gear: Chrome-Titanium alloy gear
